| 產地 | 鄭州 |
|---|---|
| 加工能力 | 500000000 |
| 上市時間 | 2012年春 |
| 適用范圍 | 五金 |
| 質量體系 | ISO9001 |
| 執行質量標準 | 美標 |
| 工藝類型 | 壓力燒結粉末 |
| 是否標準件 | 是 |
| 是否庫存 | 是 |
| 是否批發 | 是 |
| 作用對象 | 電線電纜絲 |
| 加工設備數量 | 50.0 |
| 模具材質 | 不銹鋼 |
| 品牌 | 銳捷 |
| 加工定制 | 是 |
| 準入認證 | ISO9001 |
扒皮用碳化鎢（TC）模具被廣泛地用于扒皮應用，但TC扒皮模具沒有長的使用壽命。扒皮聚晶金剛石（PCD）是一個更好的選擇，它已被證明提供了不同的導線材料優異的表面光潔度和改進的一致性。聚晶金剛石模具扒皮PCD扒皮的承載面積模具支持剃導線材料對振動，通過PCD模具剃焊絲表面比由一個TC模具剃好得多。
PCD扒皮模具的壽命是合金模具壽命的20到80倍（視材料而定），長壽命減少替換模具的安裝時間。
PCD扒皮模具優點：壽命長，一致性好，高耐磨性和耐沖擊性。
應用：銅線，鋁線，金線，鈦合金絲等需要焊絲表面剃光。

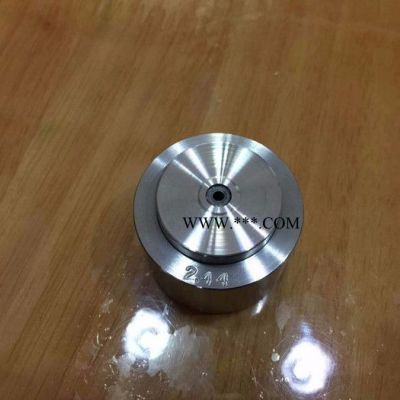

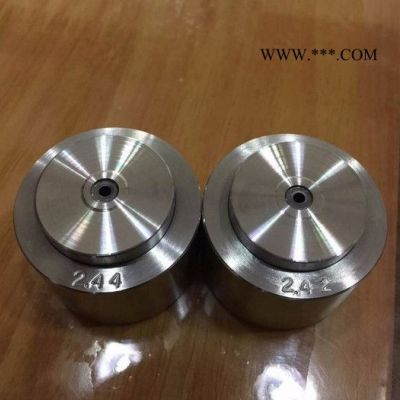

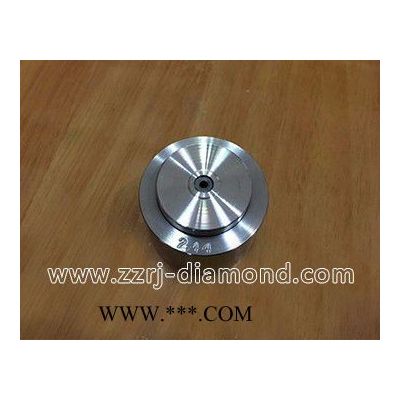

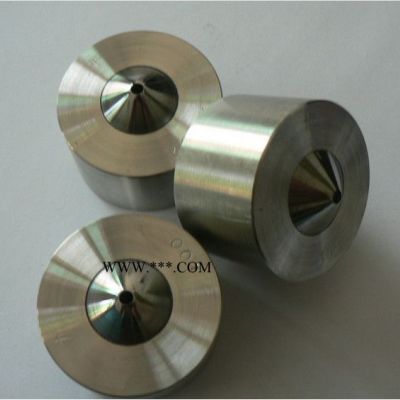

PCD Shaving Dies
Polycrystalline Diamond ShavingDies
The bearing area of PCD shavingdies support shaved wire materials against the vibration, the wire surfaceshaved by a PCD die is much better than that shaved by a TC die.
Shaving Dies with TungstenCarbide(TC) insert are widely used for shaving application. But TC shaving dieshaven't performed well relatively for lifetime, the shaved surface andhigh-precision controlled. To use polycrystalline diamond(PCD) for shaving is abetter choice. It has proven to provide a superior surface finish and improvedconsistency for different wire materials.
The lifetime of PCD shaving diesprovide 20 to 80 times (depending on materials) longer tool life than TCshaving dies. The long life reduces the **p time of exchange dies.
Advantages of PCD Shaving dies:long lifetime, good consistency, high wear resistance and impact resistance.
