| 動力形式 | 電動有氣噴涂 |
|---|---|
| 功率 | 5500（w） |
| 空氣消耗量 | 0 |
| 噴射寬度 | 500mm |
| 噴嘴直徑 | 8 10 12 14 |
| 適用范圍 | 干粉砂漿噴涂 |
| 壓力比 | 40bar |
| 種類 | 空氣噴涂機 |
| 重量 | 240（Kg） |
| 品牌 | 溫工 |
| 型號 | JP25 |
| 加工定制 | 是 |
| 最大輸出壓力 | 0（N/S） |
| 空載排量 | 0 |
| 最佳噴射距離 | 10米 |

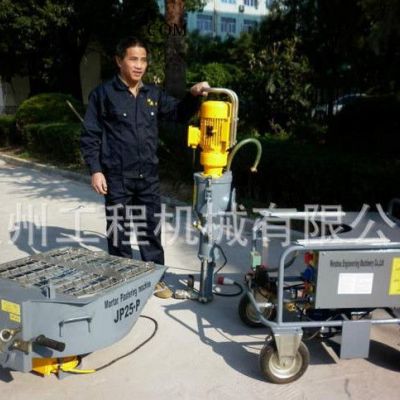

JP25是我公司引進德國技術制造的一款自動作業的機械，集合進料、混合、泵送、粘結、噴涂聯合功能為一體，適宜各種不同特性與不同用途的預拌干混砂漿施工；設置自動送料機構；具備自動連續攪拌功能；配置計量水泵與供水系統；壓力控制保護機構，實現遠程控制操作；模塊式結構，拆卸簡單，移動方便，使用容易。
JP25 is an automatic operation of plastering machine introduced German technology. It combines multi-functions of feeding, pumping, bonding and plastering, it’s suitable for construction of different characteristics and use dry ready-mixed mortar. It sets automatic feeding system to achieve automatic continuous mixing function. It fixes measuring water pump and supply water system. It sets the pressure controlling protection mechanism and achieves the remote control. With modular structure, it's easy to move, dissemble and operate.
標準配置Standard equipment
混合區料斗Mixing hopper
泵設備Pump equipment Wenggong D40
帶有氣源支持噴槍Spraying gun with air support (配噴嘴with spraying nozzle)
水量電樞控制集成 Water volume armature control integration
水壓泵Water pressure pump
輸漿管Delivery hose GB/T3683 25-1-W.P或
GB/T3683 32-1-W.P.9Mpa Length:10m
帶快速連接器空氣管Air tube with fast connector ID:￠13 Length:10m
防震壓力計總成 Shockproof pressure gage assembly YN60 6Mpa
攪拌器和硬質合金鋼轉子 Mixer screw shaft and carbide steel rotor
齒輪馬達Gear motor SK25FAL-100LB/2
工具箱Tool box
操作說明書Operating instruction
JP25型砂漿噴涂機技術參數
Technical parameters of JP25 Mortar plastering machine
電源Supply power 380V 50Hz
電機功率Motor power 5.5kw
壓縮機功率Compressor power 2.2kw
**大顆粒尺寸Maximum grain size 4mm
排量Output 25L/min
輸送壓力Delivery pressure 40bar
水平輸送距離Horizontal delivery distance 40m
垂直輸送距離Vertical delivery distance 15m
攪拌機功率Mixer power 1.1kw
攪拌機容量Mixer volume 115L
重量Net weight 240kg
外型尺寸Dimension (L×W×H) 1324*728*1443mm
注：以上數據只作參考，因選用砂漿的理化性能差別，其產生的各項數值也不相同。
Note: The above figures are only for reference, due to differences in physical and chemical properties of selected mortar, its each value is different accordingly.
